Socketed single-phase charging with optional 4G connectivity

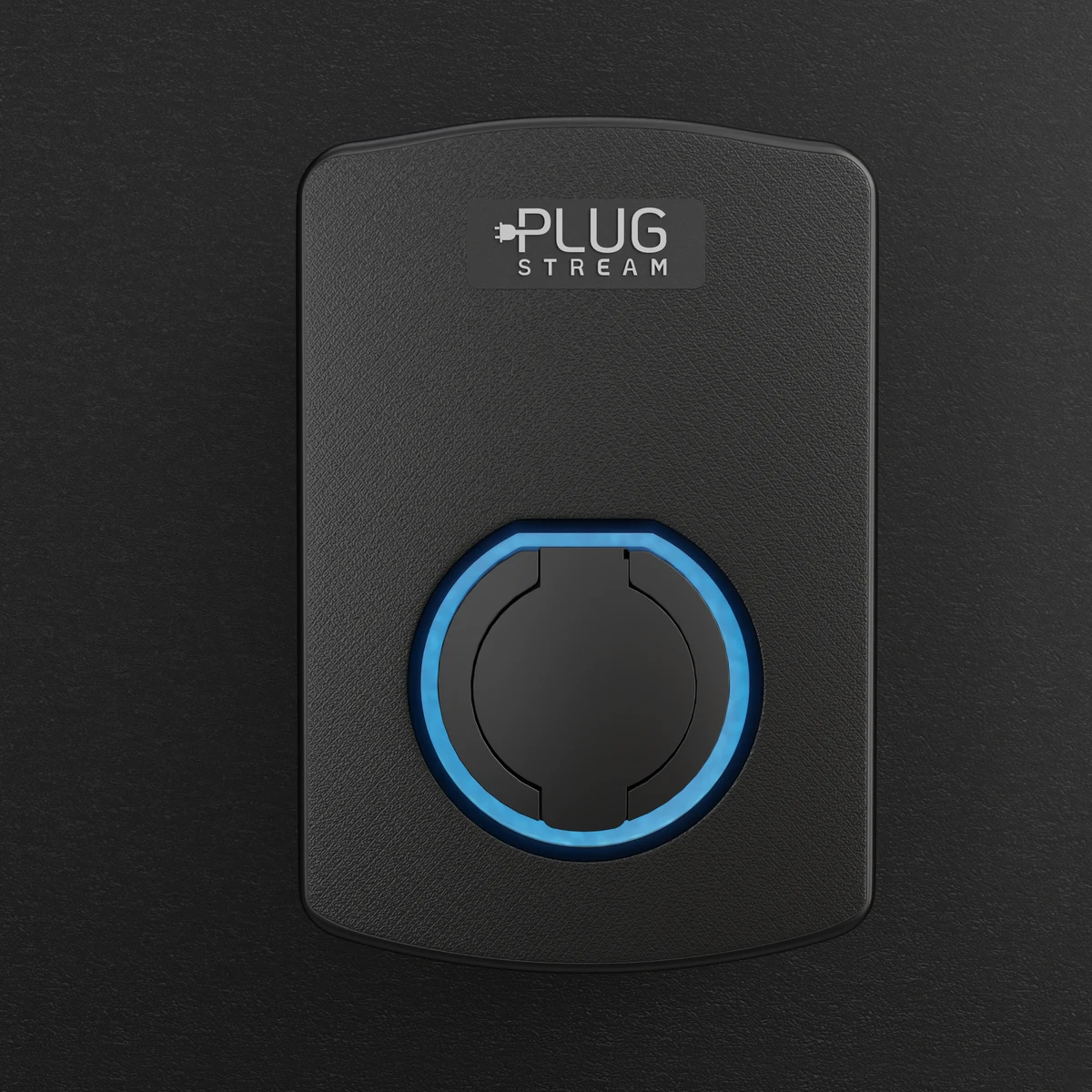

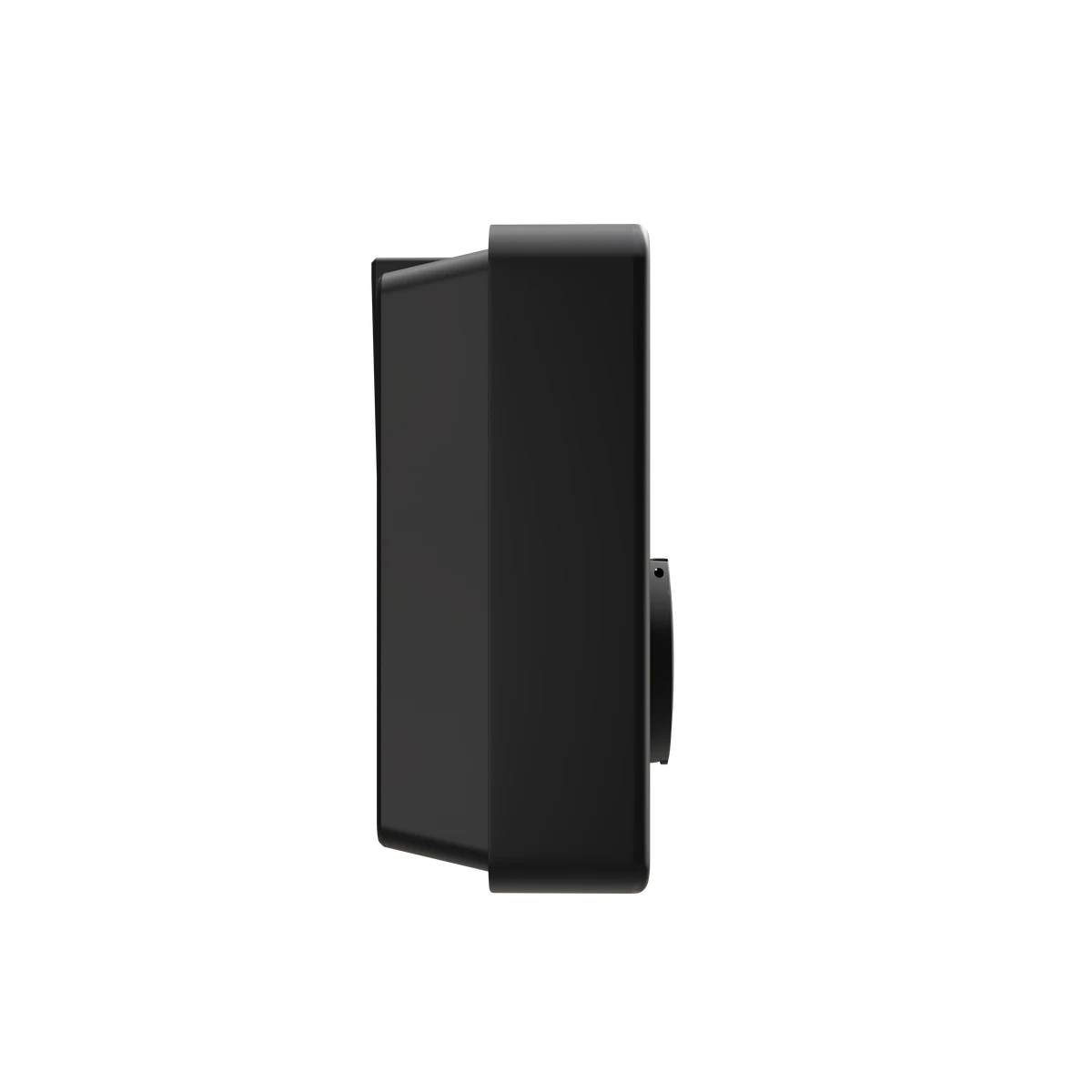

Meet PlugStream 7S

Flexible, compact, and future-ready. PlugStream 7S gives you all the intelligence of PlugStream charging in a socketed 7.4kW package that suits changing vehicles, visitors, and shared spaces.

7.4kW single-phase charging with a universal Type 2 socket
Smart tariff scheduling, solar matching, and automatic load management
3 year warranty as standard, 5 years with installer activation
Front cover colour options: Black, Red, Grey, or Green

£599 inc VAT

Excluding installation unless stated otherwise.

PlugStream 7S Overview

Key Features

PlugStream 7S is our flexible single-phase charge point for homes, shared driveways, apartment parking, and workplace bays. It combines durable British hardware with smart controls that help drivers charge at the right time, with the right cable, and with room to grow.

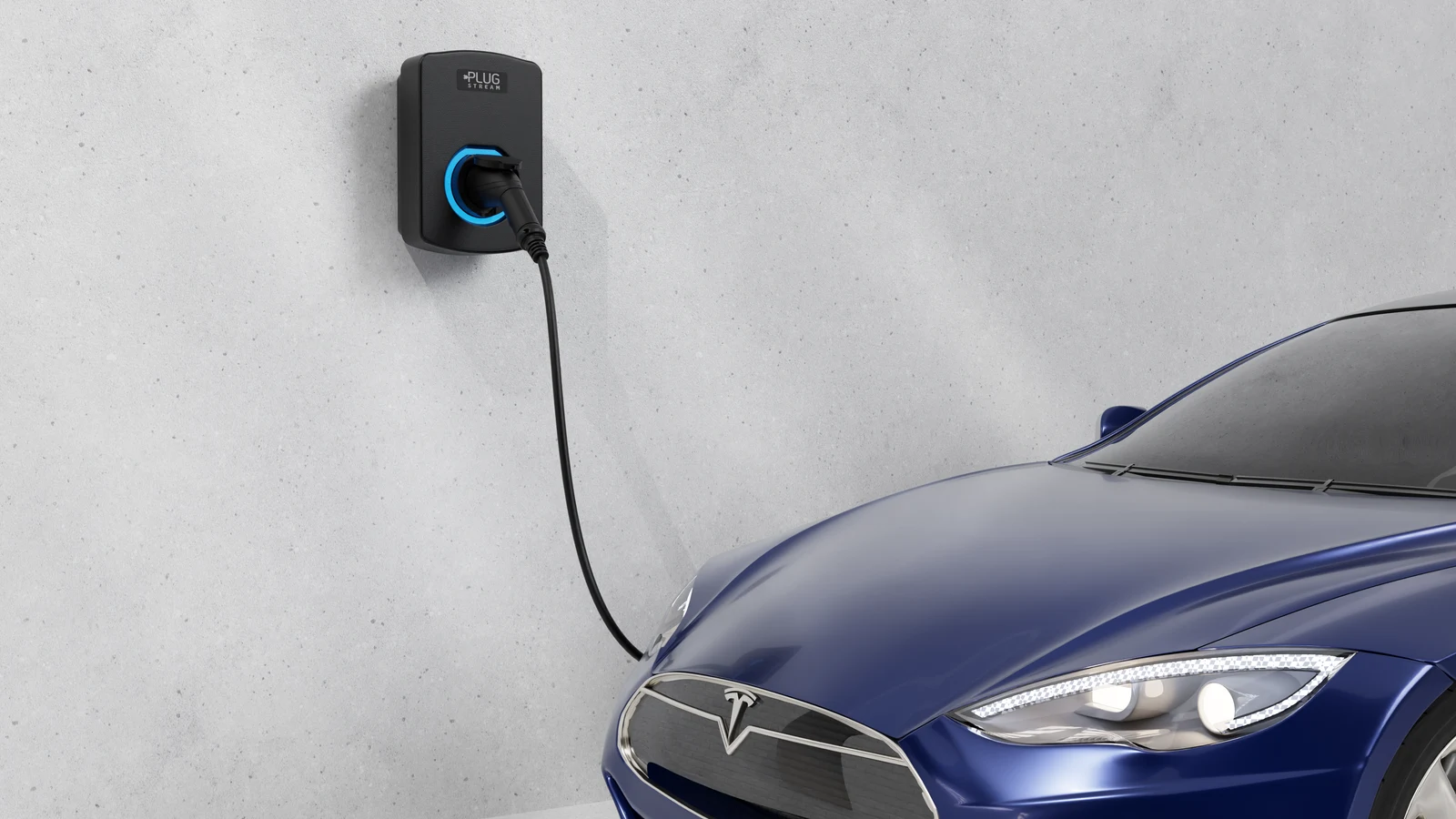

PlugStream 7S installed beside an electric vehicle

Socketed flexibility

Choose the cable that suits the vehicle on the day. PlugStream 7S is ideal when more than one driver may use the charger or when you want a neater finish between sessions.

Start, stop, and schedule charging

Set charging windows around your routine, your tariff, or your vehicle readiness so the charger works in the background instead of demanding daily attention.

Connected through Wi-Fi, Bluetooth, Ethernet, or optional 4G

Keep commissioning and daily operation reliable with multiple connectivity options designed for domestic installs and harder-to-reach parking areas alike.

Solar aware charging

Pair PlugStream 7S with the right metering setup to align charging with on-site solar generation and help households use more of their own energy first.

OCPP 2.0.1 ready

PlugStream 7S stays back-office agnostic, making it ready for PlugStream Cloud or another OCPP-compliant software platform as your needs evolve.

Installer friendly hardware

Built-in PEN protection and integral 6mA DC leakage detection simplify installation while keeping the finished system compliant and tidy.

Over-the-air software updates

Receive ongoing improvements without replacing hardware, helping the product stay current with new features and future grid services.

Automated load management

Balance available power between the charger and the wider property to avoid unnecessary upgrades and make better use of the supply you already have.

Charging driven by your tariff

PlugStream works with supported smart tariffs so drivers can take advantage of lower-cost off-peak windows while still waking up ready to drive.

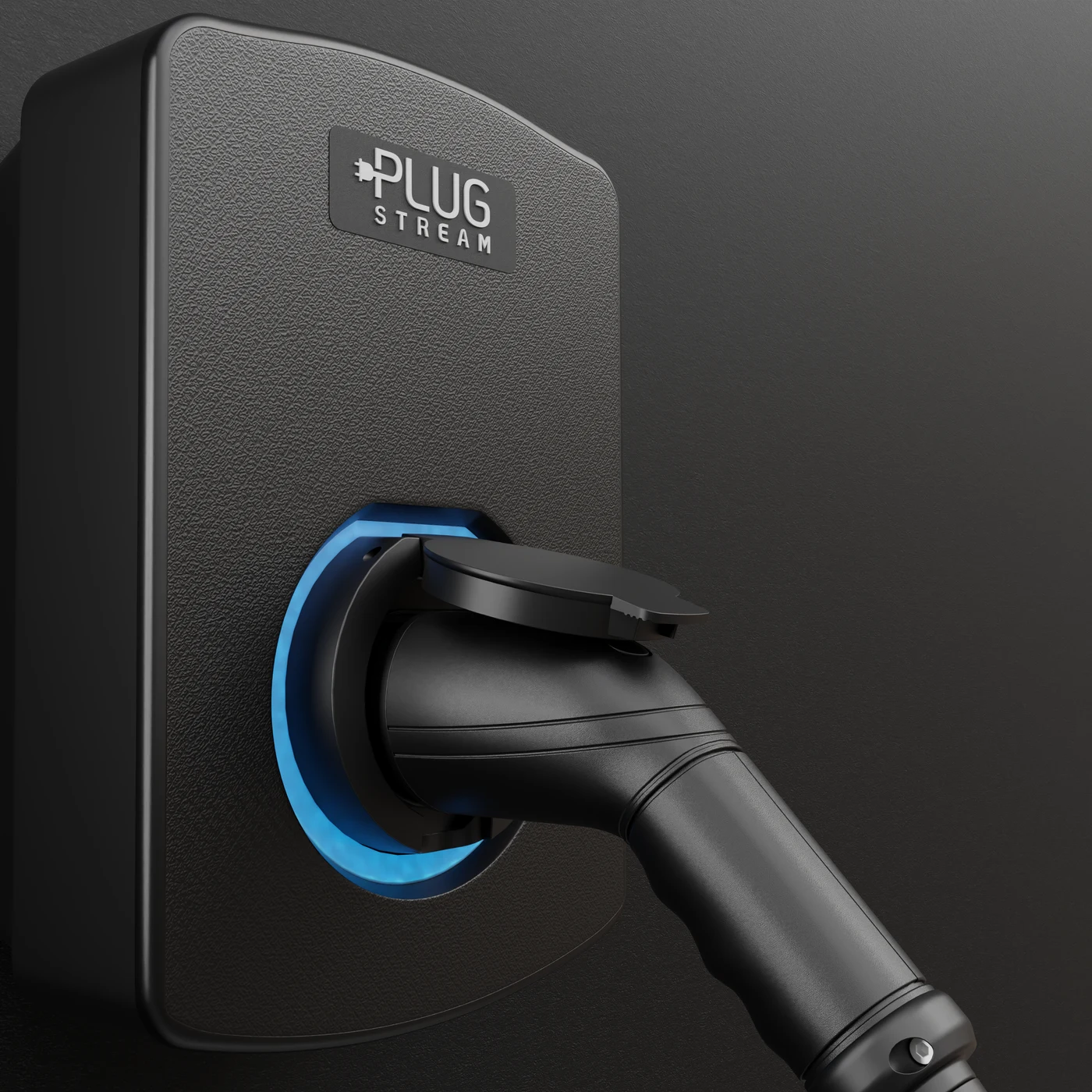

PlugStream 7S with Type 2 connector inserted

Smart Tariff Support

Charging with smart tariffs

PlugStream is designed to work with smart tariff-led charging so drivers can shift charging into lower-cost windows instead of plugging in at the same time every day.

If you use compatible Octopus Energy tariffs, you can build your charging routine around real household energy prices, intelligent scheduling, and off-peak periods to make everyday EV charging easier to manage.

Check Octopus compatibility

Detailed Specifications

Technical details for PlugStream 7S, including connectivity, compliance, and installation-ready electrical information.

Product Information: Model: PlugStream 7S
Capacity: Single Phase, 7.4kW AC
Charging Connector: Socket, IEC 62196 / Type 2
Dimensions (mm): 270 (H) x 190 (W) x 100 (D)
Mounting Type: Wall mounted as standard; pole mount available separately
Front Cover Colour Options: Black, Red, Grey, Green
Unit Material: PC / ASA-CF
Charging Mode: Mode 3 (compliant with BS EN IEC 61851-1:2019)
Electrical Properties: Rated supply voltage: 230 AC, Single Phase
Rated power: 7.4kW
Rated current of assembly: 32A max
Output: AC 230V 7.4kW Single Phase
Mains Frequency: 50Hz
Compatible earthing systems: TN-C-S and TN-S (PEN fault protection) or TT
Electromagnetic Compatibility (EMC): Classification Type B
Connectivity: Wi-Fi: Wi-Fi 802.11b/g/n @2.4 GHz
Bluetooth: Bluetooth LE (Version 5.0)
Ethernet: Cat 5 RJ45 hardwired connection
4G (LTE) Connectivity (optional upgrade)
Safety: RCD Protection: Internal 6mA DC RCD (external AC protection required, Type A recommended)
PEN Fault Protection: Integrated PEN fault protection compliant with Amendment 2 of BS7671:2018
Overcurrent protection: External protection required (MCB or RCBO). We recommend B or C Curve, 40A
Standards and Compliance: Electric Vehicles (Smart Charge Points) Regulations 2021
EV Charging Compliance: EN 61851-1:2019, BS 7671:2018 + A1:2020, RoHS 2011/65/EU
Safety Compliance: 2014/53/EU Radio Equipment Directive 3.1(a), EN IEC 61851-1:2019, EN 62196-1:2014, IEC TS 61439-7:2014
EMC Compliance: 2014/53/EU Radio Equipment Directive 3.1(b), EN IEC 61851-21-2:2021, EN 55032:2015 + A1:2020 (Class B)
Commission Regulation (EC) No 1275/2008
Impact Protection: IK10
Ingress Protection: IP66
Environment: Operating temperature: -25 to 40 C
Operating humidity: Up to 95% RH, non-condensing
Pollution degree: 3
Maximum altitude: 2000m
