Socketed three-phase charging with MID metering, optional 4G and bidirectional options

Meet PlugStream 22S

Power meets flexibility. PlugStream 22S delivers socketed 22kW charging with the connectivity, MID metering interface, bidirectional options, and software control required for higher-demand domestic and commercial installations.

Sensor Confidence Ready
Sentinel Protect is included.
Up to 22kW socketed charging with single-phase or three-phase installation options
V2G and V2L options for compatible vehicles, installations, and projects
MID meter interface for auditable energy measurement and project-specific billing
Wi-Fi, Bluetooth, Ethernet, and optional 4G connectivity

£649 ex VAT

MRRP

Manufacturer’s recommended retail price. Available through authorised distributors; retailer prices may vary.

View Data Sheet

Buyer Confidence

Why teams feel confident specifying PlugStream 22S

Confidence comes from more than power output. PlugStream combines warranty clarity, British support, installer-ready hardware, and compliance-led design so the site decision is easier to defend.

Warranty and support cover

3-year warranty as standard, extended to 5 years with installer activation, backed by UK-based support routes.

Designed for practical installation

Installer-friendly hardware, clear commissioning paths, and a pole-mount option available separately where the site needs it.

Made and supported in Britain

PlugStream is proudly designed, manufactured, and supported in the UK for faster communication and clearer accountability.

Choice of charging platform

OCPP 1.6J, OCPP 2.0.1 and OCPP 2.1 support gives you options for PlugStream Cloud or a compatible third-party management platform.

Read the Warranty Policy Read News & Blog Talk to the PlugStream Team

Built-in features

Smarter charging features built around real journeys

PlugStream features help connect the hardware, driver experience and support journey, from product identity to charger readiness and delayed-session resilience.

PlugStream Passport

A smarter journey from delivery to support - setup, support and traceability for every PlugStream charger.

Learn about PlugStream Passport

Charger Readiness

Charger Readiness helps drivers, installers and support teams understand whether a charger is ready for the next charging window.

Learn about Charger Readiness

Vehicle Wake Assist

Vehicle Wake Assist helps reduce missed charging windows by checking for sleeping-vehicle behaviour and retrying the session path where supported.

Learn about Vehicle Wake Assist

Sensor Confidence

Checks whether charger readings remain credible by evaluating behaviour, timing, operating context and independent evidence locally.

Explore Sensor Confidence

PlugStream 22S Overview

Key Features

PlugStream 22S is built for sites that need faster charging and more room to scale, while keeping the everyday flexibility of a socketed Type 2 format. MID metering, optional 4G, and V2G or V2L project options extend the same platform into more demanding installations.

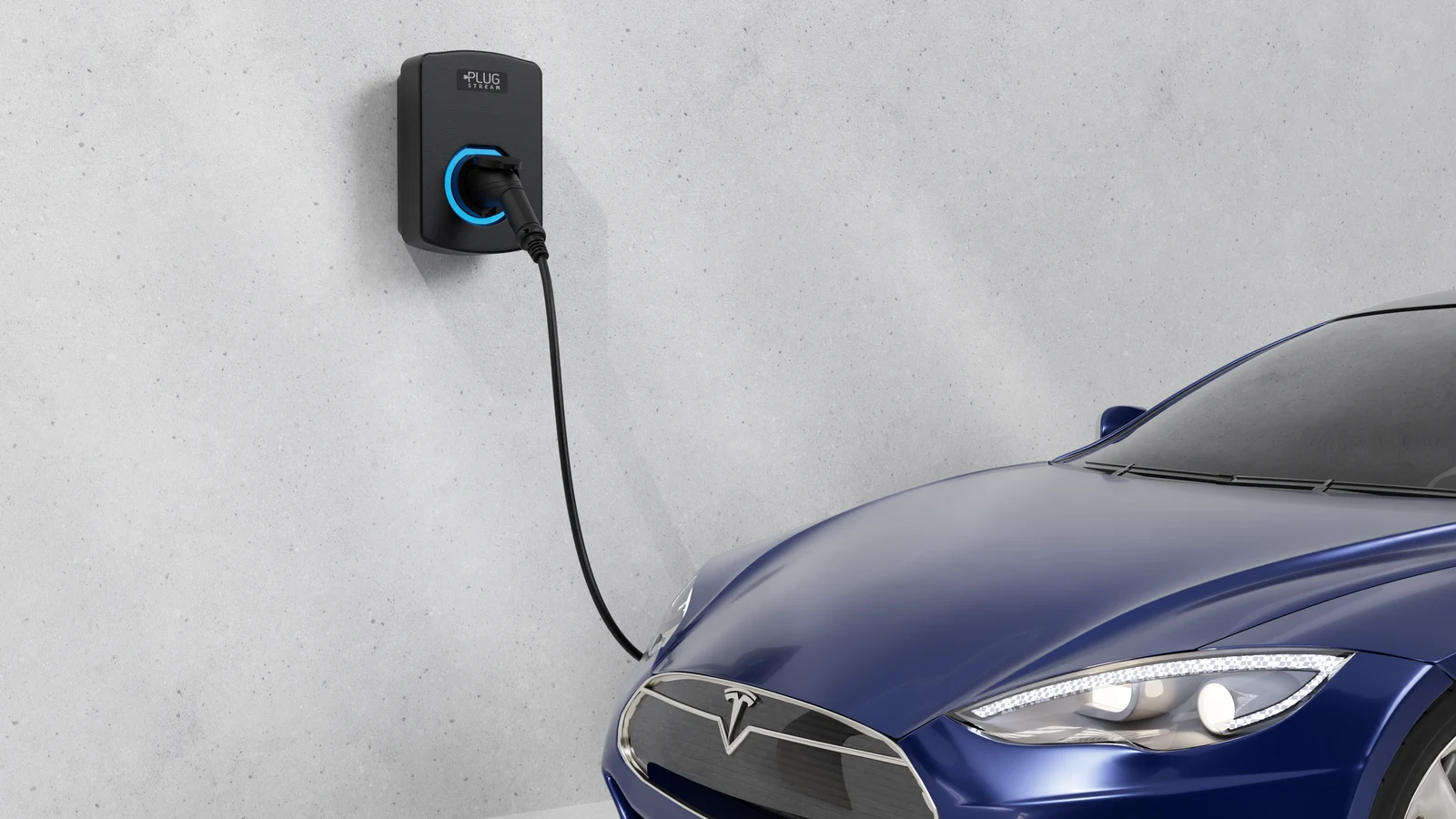

PlugStream 22S installed beside an electric vehicle

Up to 22kW AC charging

Designed for higher-demand sites, PlugStream 22S supports faster charging where three-phase power is available while preserving the clean PlugStream design language.

Domestic and commercial flexibility

Suitable for homes, private communal parking, leisure settings, and business premises where a more capable charger or scalable site architecture is required.

Start, stop, and schedule charging

Use the PlugStream app to automate charging around your energy pricing strategy, your operating hours, and the availability of vehicles on site.

Connected through Wi-Fi, Bluetooth, Ethernet, or optional 4G

Multiple connectivity paths make the charger easier to commission and easier to manage over time.

Three OCPP versions. More platform choice.

OCPP 1.6J, OCPP 2.0.1 and OCPP 2.1 support keeps your choice of management platform open. Connect to PlugStream Cloud or a compatible third-party platform, with the required workflows checked for your project.

Installer friendly commercial hardware

Built-in safety measures and practical cable routing help installers deploy single or multi-unit sites efficiently with less unnecessary complexity.

V2G and V2L options

Specify bidirectional charging options for projects that need vehicle-to-grid or vehicle-to-load capability. Operation depends on a compatible vehicle, site electrical design, and the selected project configuration.

Over-the-air software updates

Stay current with future improvements and operational enhancements without replacing charge point hardware in the field.

Automated load management

Distribute available site power intelligently across more than one charger to make the most of the existing supply and support staged expansion.

MID meter interface

Connect a compatible MID meter for auditable energy measurement and project-specific billing. Public and destination charging projects can add a separate payment terminal scoped around the site and payment journey.

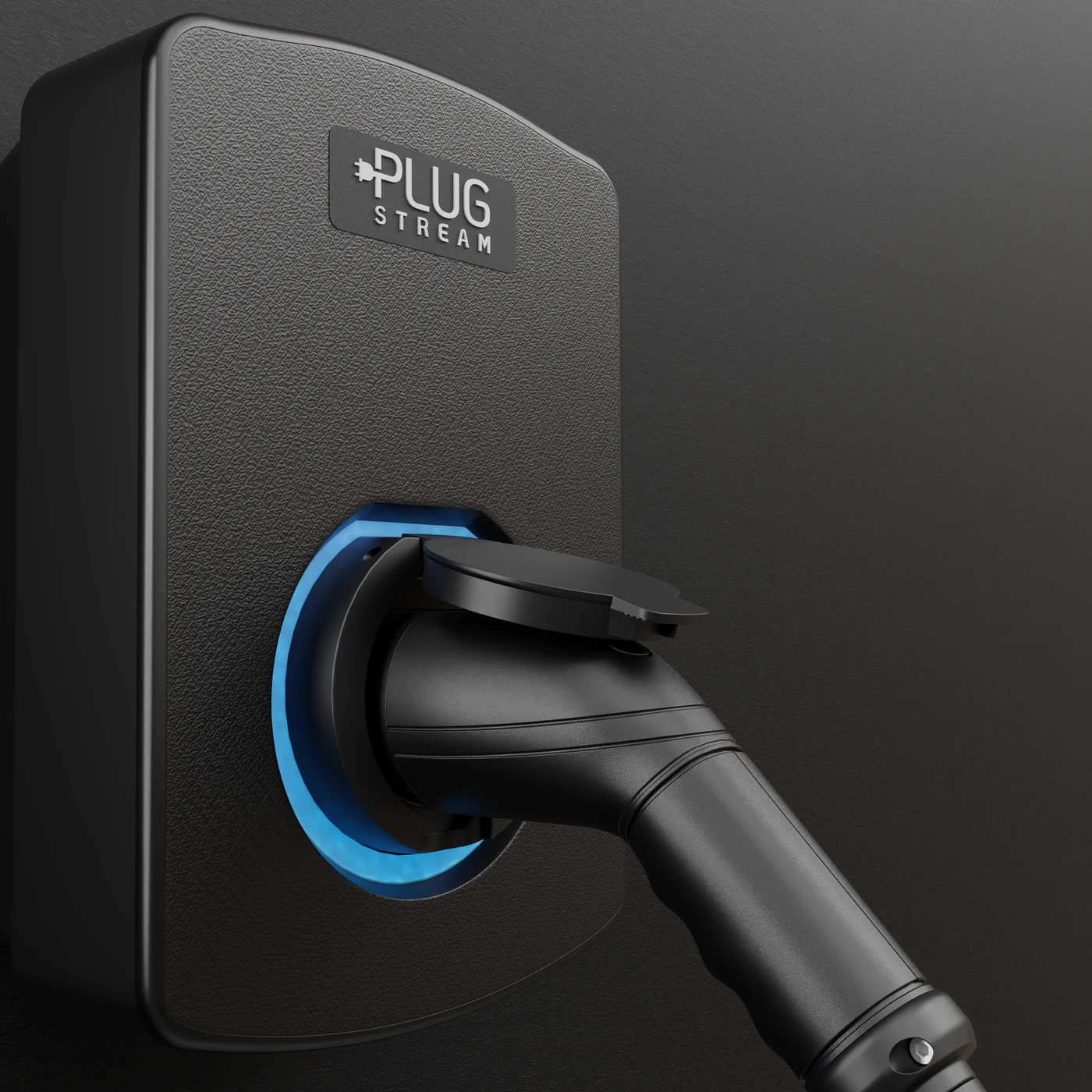

PlugStream 22S with Type 2 connector inserted

Smart Tariff Support

Charging with smart tariffs

PlugStream is designed to work with smart tariff-led charging so drivers can shift charging into lower-cost windows instead of plugging in at the same time every day.

If you use compatible Octopus Energy tariffs, you can build your charging routine around real household energy prices, intelligent scheduling, and off-peak periods to make everyday EV charging easier to manage.

Check Octopus compatibility

Open charging platform

Choose the platform behind your charger.

PlugStream Firmware supports OCPP 1.6J, OCPP 2.0.1 and OCPP 2.1. That gives you more choice when connecting a new charger, expanding an estate or planning a move to another management platform.

OCPP 1.6J

Connect to established platforms

Support for existing charging estates using the JSON over WebSocket version of OCPP 1.6.

OCPP 2.0.1

Manage more of the charger

A richer Device Model for configuration and monitoring, with expanded transaction and security capabilities.

OCPP 2.1

Plan for energy integration

A protocol foundation for newer charging and energy services as compatible platforms and equipment adopt them.

Each connection uses one agreed protocol version. Compatibility depends on the installed firmware, platform configuration and required features. OCPP 2.1 support alone does not enable bidirectional charging or every optional feature; these also depend on the vehicle, hardware and site.

Explore our three OCPP versions

Detailed Specifications

Technical details for PlugStream 22S, including connectivity, compliance, and installation-ready electrical information.

Product Information: Model: PlugStream 22S
Capacity: Three Phase, 22kW AC
Charging Connector: Socket, IEC 62196 / Type 2
Dimensions (mm): 428 (H) x 320 (W) x 136 (D)
Mounting Type: Wall mounted as standard; pole mount available separately
Unit Material: PC / ASA-CF
MID meter interface: Supports compatible MID metering for auditable energy measurement and project-specific billing
Bidirectional charging options: V2G and V2L operation depends on vehicle, installation, and project compatibility
Public charging configuration: A separate payment terminal can be specified to suit the site
Charging Mode: Mode 3 (compliant with BS EN IEC 61851-1:2019)
Electrical Properties: Rated supply voltage: 415 AC, Three Phase
Rated power: 22kW
Rated current of assembly: 32A max
Output: AC 415V 22kW Three Phase
Mains Frequency: 50Hz
Compatible earthing systems: TN-C-S and TN-S (PEN fault protection) or TT
Electromagnetic Compatibility (EMC): Classification Type B
Connectivity: Wi-Fi: Wi-Fi 802.11b/g/n @2.4 GHz
Bluetooth: Bluetooth LE (Version 5.0)
Ethernet: Cat 5 RJ45 hardwired connection
4G (LTE) Connectivity (optional upgrade)
OCPP: 1.6J / 2.0.1 / 2.1
Protocol availability depends on installed firmware and platform configuration
Safety: RCD Protection: Internal 6mA DC RCD (external AC protection required, Type A recommended)
PEN Fault Protection: Integrated PEN fault protection compliant with Amendment 2 of BS7671:2018
Overcurrent protection: External protection required (MCB or RCBO). We recommend B or C Curve, 40A
Standards and Compliance: Electric Vehicles (Smart Charge Points) Regulations 2021
EV Charging Compliance: EN 61851-1:2019, BS 7671:2018 + A1:2020, RoHS 2011/65/EU
Safety Compliance: 2014/53/EU Radio Equipment Directive 3.1(a), EN IEC 61851-1:2019, EN 62196-1:2014, IEC TS 61439-7:2014
EMC Compliance: 2014/53/EU Radio Equipment Directive 3.1(b), EN IEC 61851-21-2:2021, EN 55032:2015 + A1:2020 (Class B)
Commission Regulation (EC) No 1275/2008
Impact Protection: IK10
Ingress Protection: IP66
Environment: Operating temperature: -25 to 40 C
Operating humidity: Up to 95% RH, non-condensing
Pollution degree: 3
Maximum altitude: 2000m

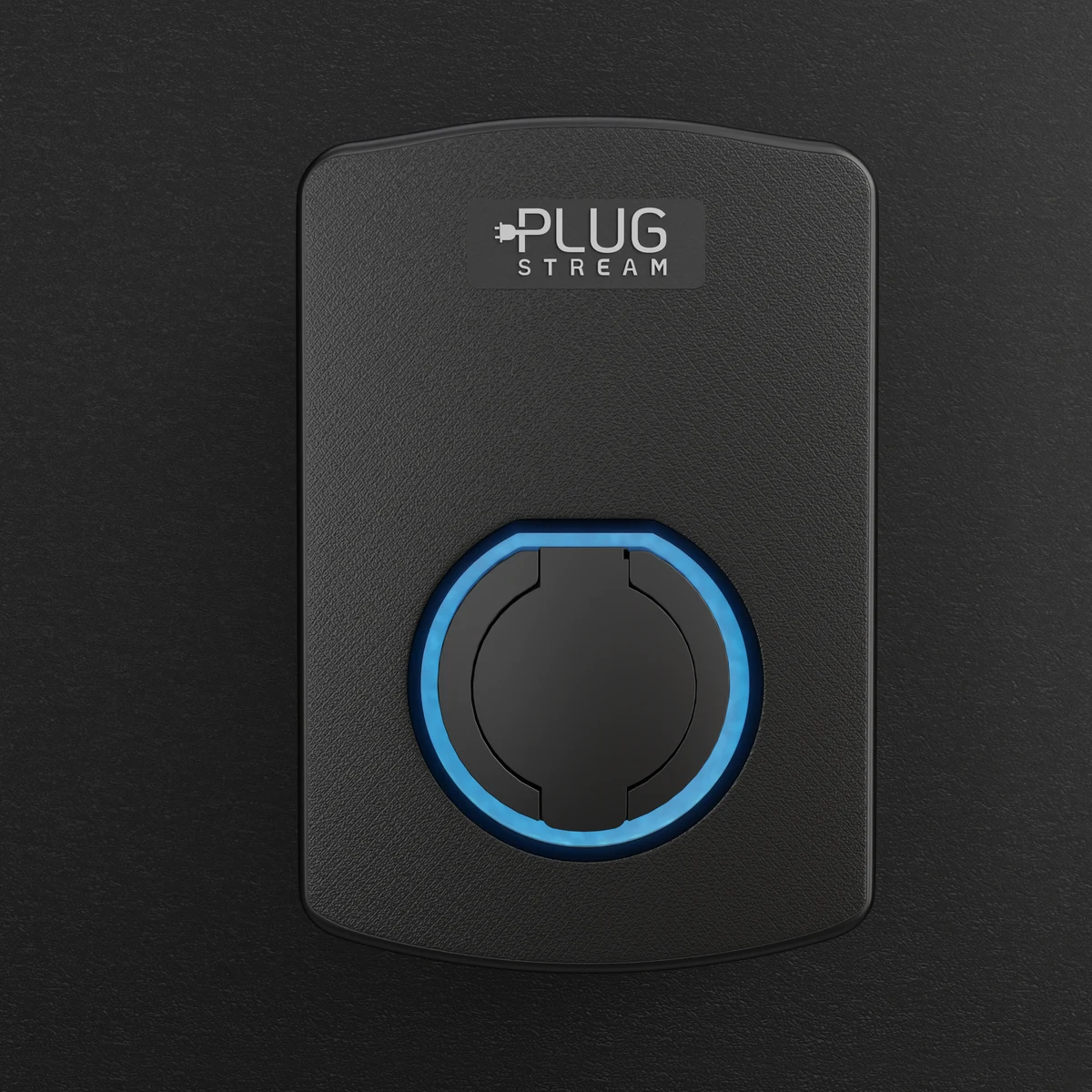

Front view of the PlugStream 22S socketed charger

Overall size

428 x 320 x 136 mm
